HammerHead Rock Tools
MK-Hydraulic Wagon Wheel
Parts List
Click on Underlined Part to View
MK-HYD-0001: Hydraulic Motor
MK-HYD-0002: Spacer Plate
MK-HYD-0003: Adaptor Plate

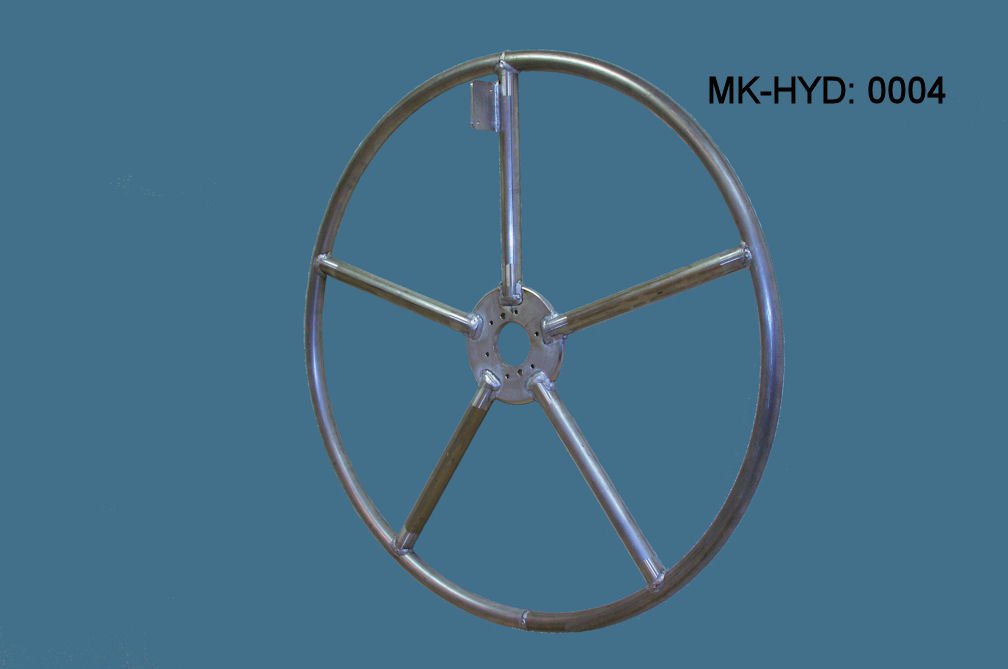

MK-HYD-0004: Wagon Wheel, Single Tab
MK-HYD-0005: Series 200 Swivel
MK-HYD-0006: Drill Control Valve
MK-HYD-0007: Male Quick Disconnect
MK-HYD-0008: Female Quick Disconnect
MK-HYD-0009: Bulkhead Fitting
MK-HYD-0010: JIC 45Deg Swivel
MK-HYD-0011: #8 Hydraulic Hose, 19 3/4″ Long
MK-HYD-0012: #8 Hydraulic Hose, 16 1/2″ Long
MK-HYD-0013:Motor Mount Bolt, 7/16″ x 14 x 3″ Long
MK-HYD-0014: Control Valve Bolts, 5/16″ x 18 x 3/4″ Long
MK-HYD-0015: Addaptor Bolts, 5/16″ x 18 x 1 1/2″ Long
MK1-HATZ-0016: Swivel Mount Bolts, 5/16″ x 18 x 3/4″ Long
