HammerHead Rock Tools
MK3-15 Wagon Wheel
Parts List
Click on Underlined Part to View

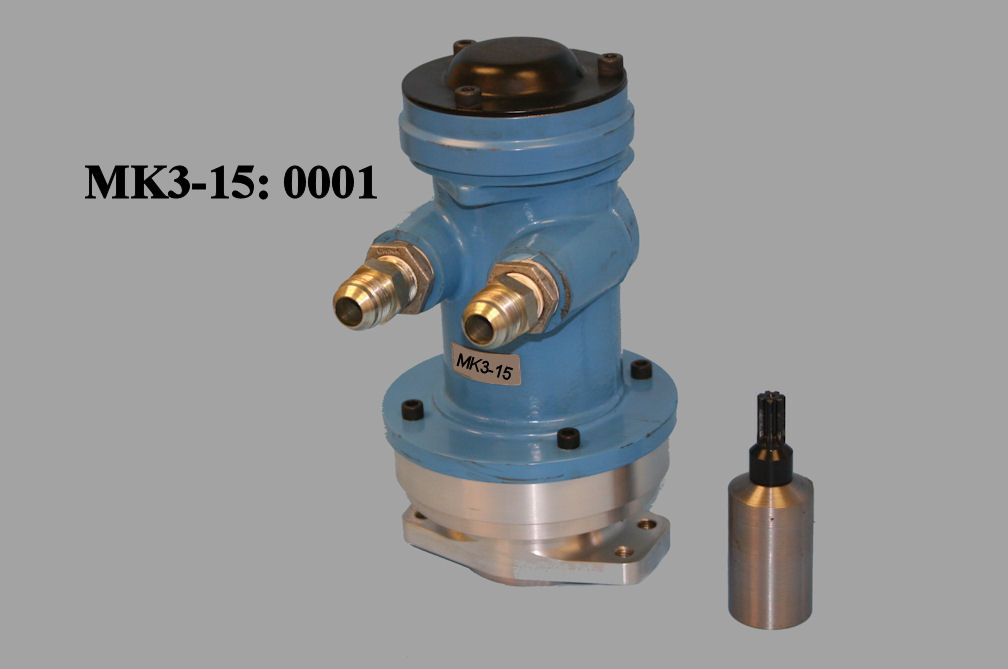

- MK3-15-0001: Air Motor Assembly, w/Pinion

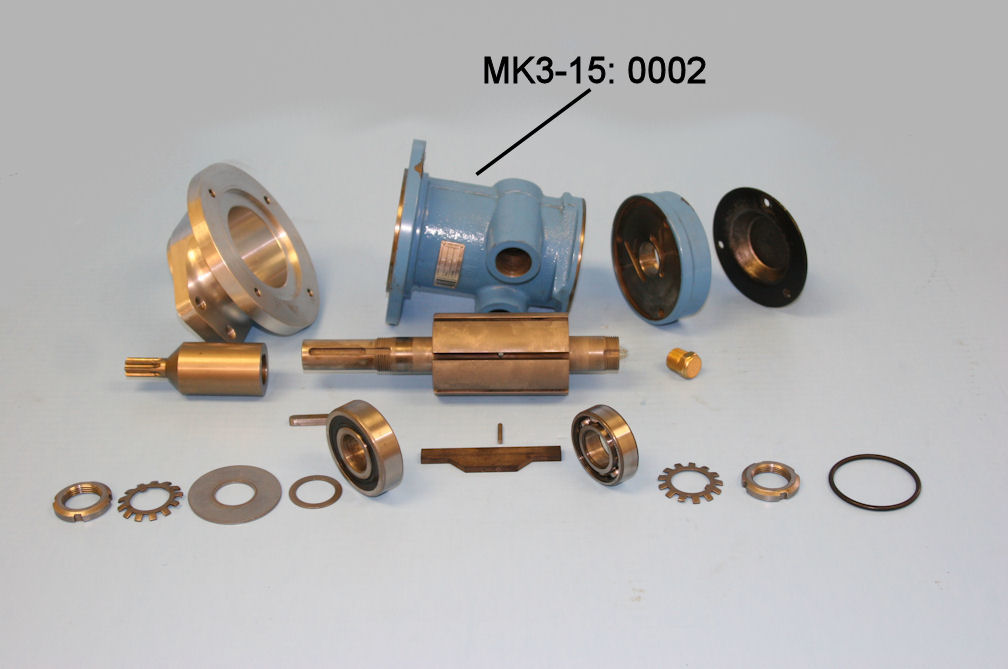

- MK3-15-0002: Motor Casing
- MK3-15-0003: Restrictor Plate
- MK3-15-0004: Restrictor Plate

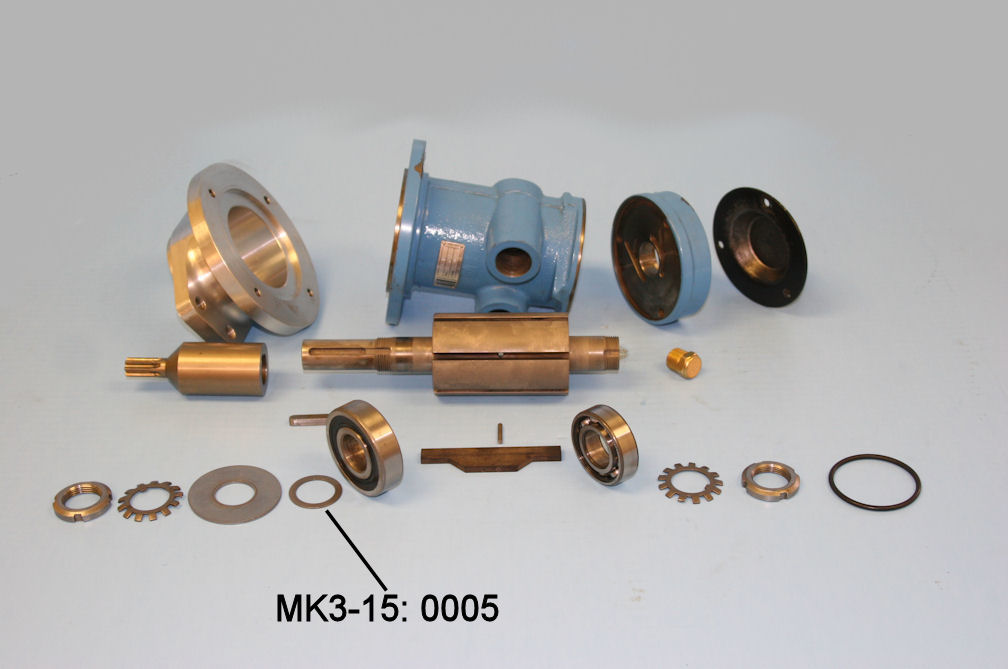

- MK3-15-0005: Spacer

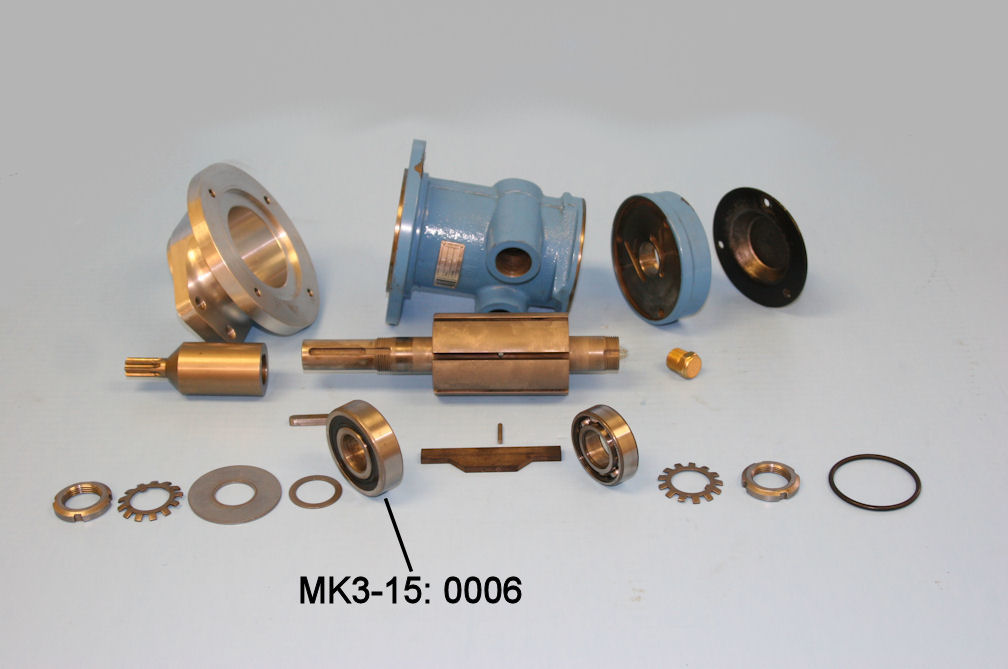

- MK3-15-0006: Ball Bearing, 6306-2RS

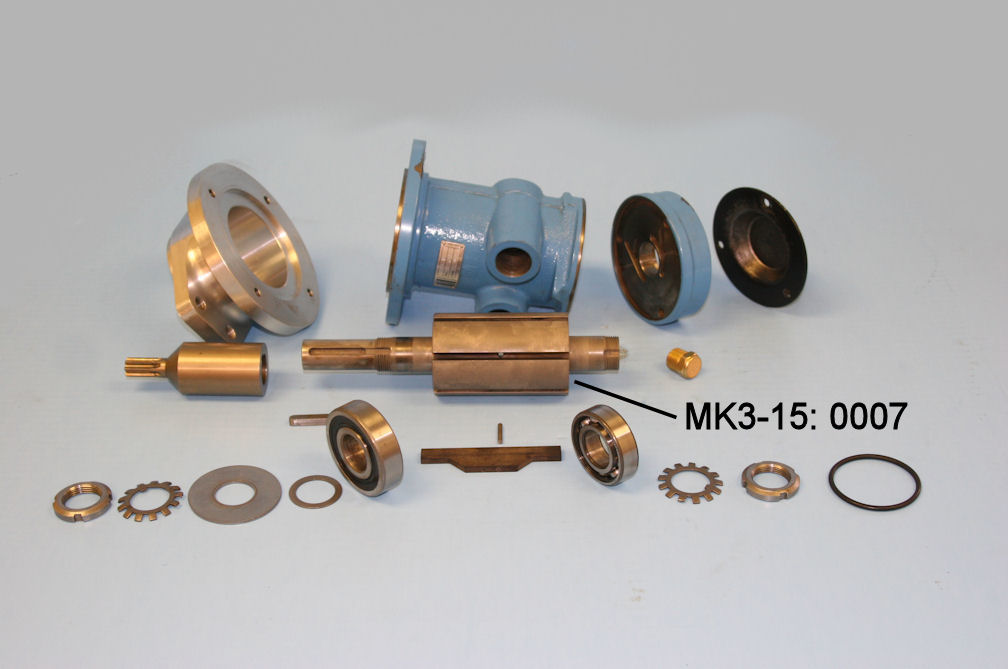

- MK-RA75-0007: Rotor

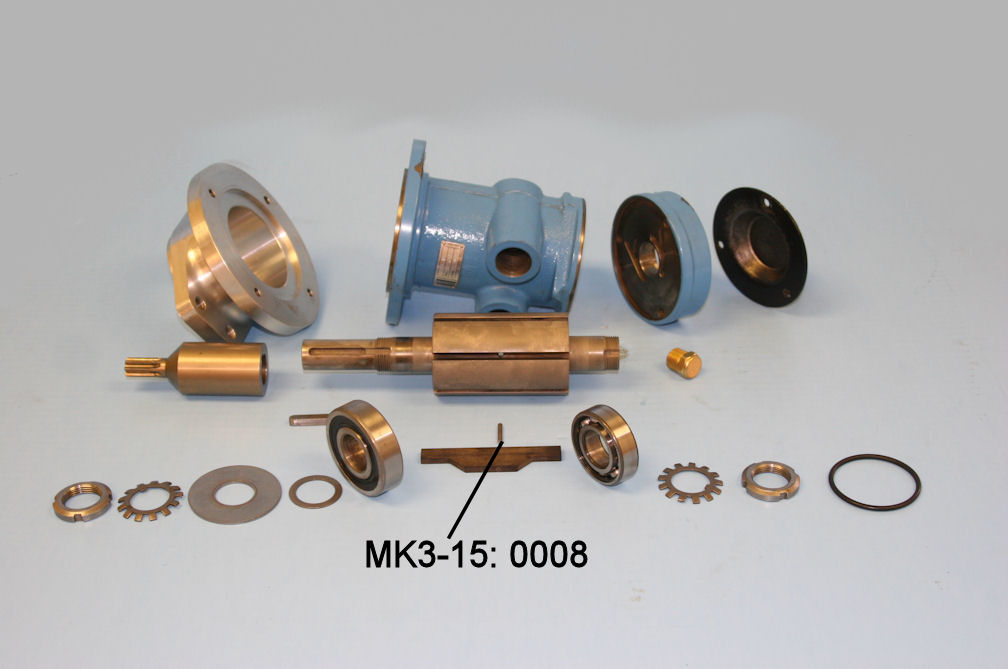

- MK3-15-0008: Pin
- MK3-15-0009: Vane
- MK3-15-0010: End Block

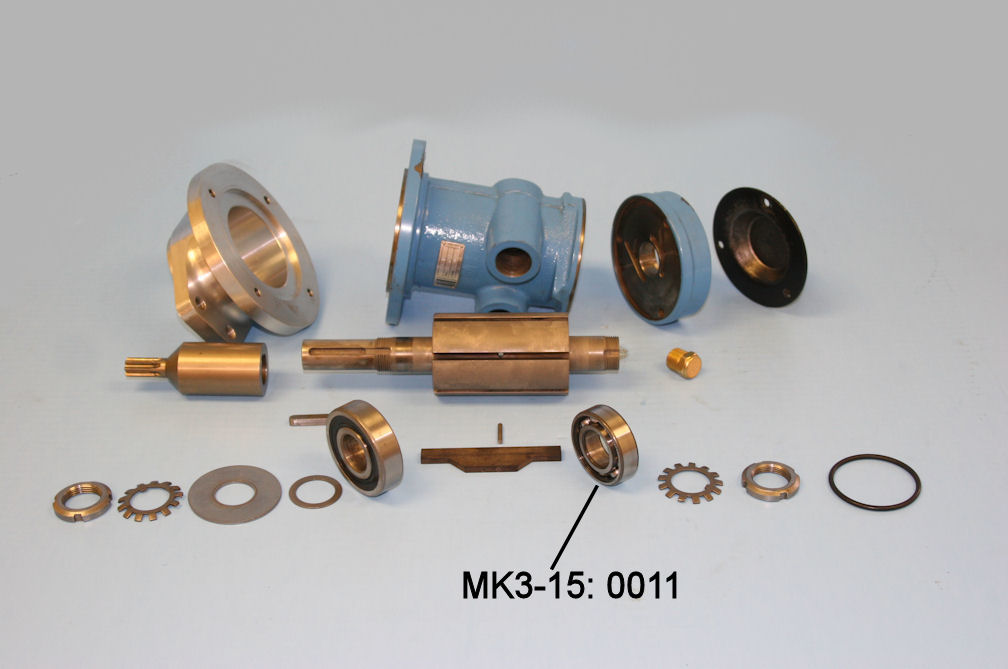

- MK3-15-0011: Ball Bearing, 6205

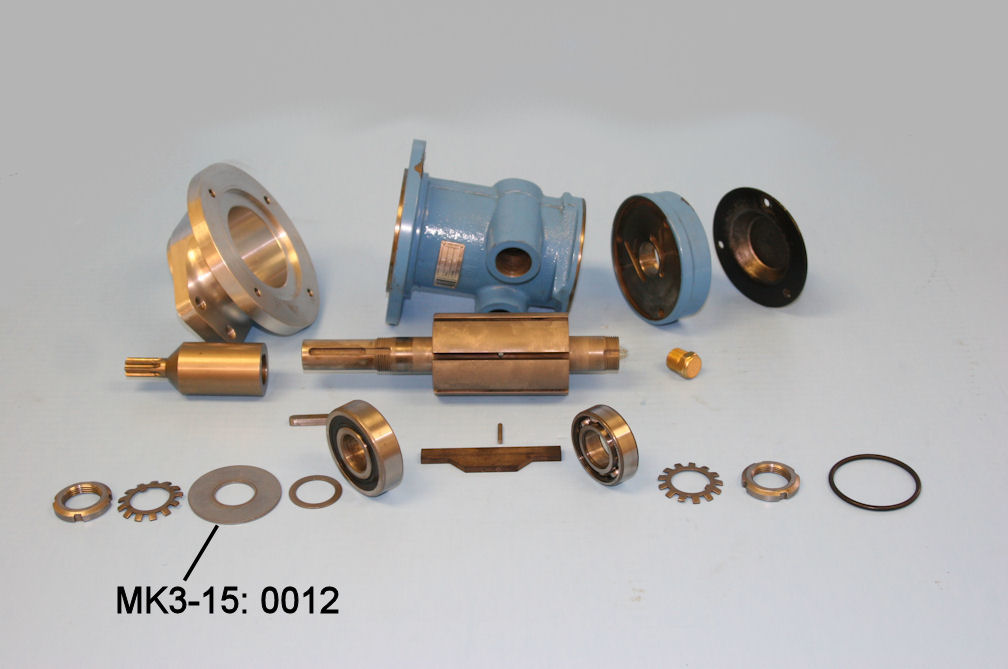

- MK3-15-0012: Washer

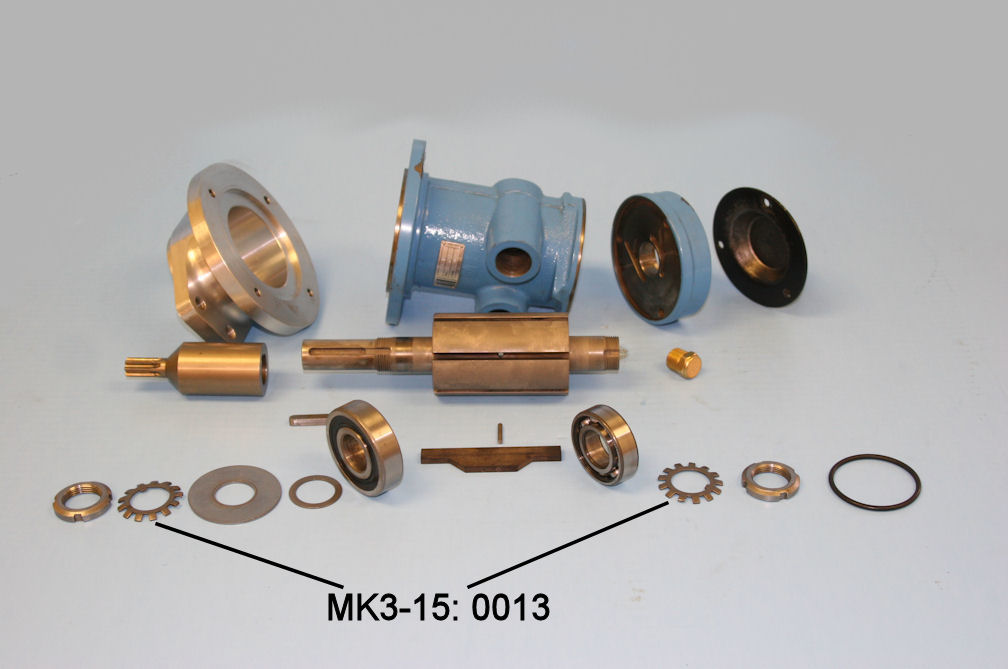

- MK3-15-0013: Lock Washer
- MK3-15-0014: Lock Nut

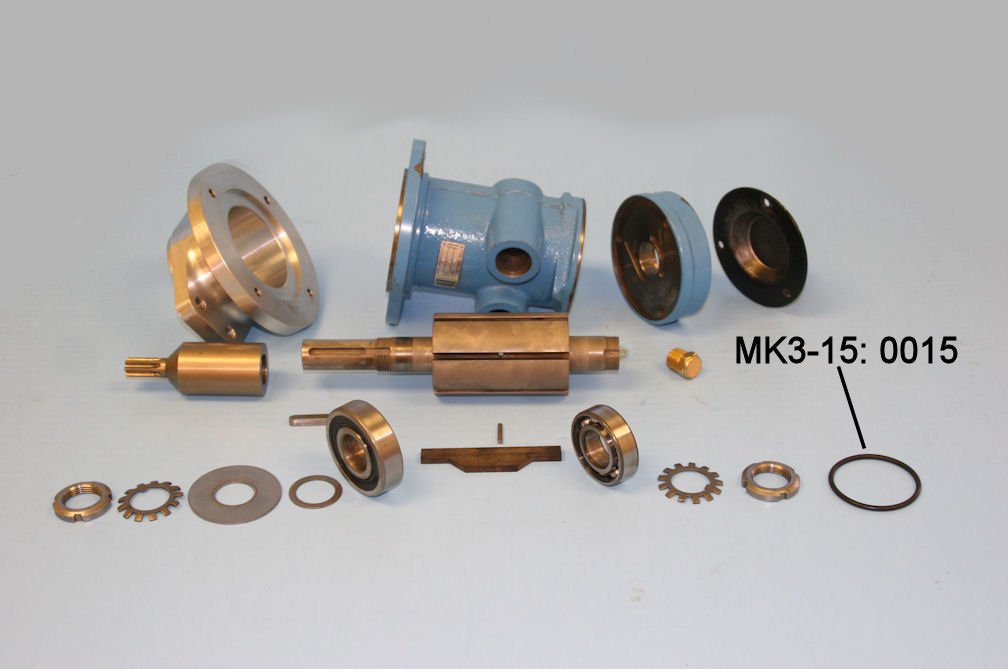

- MK3-15-0015: O-Ring

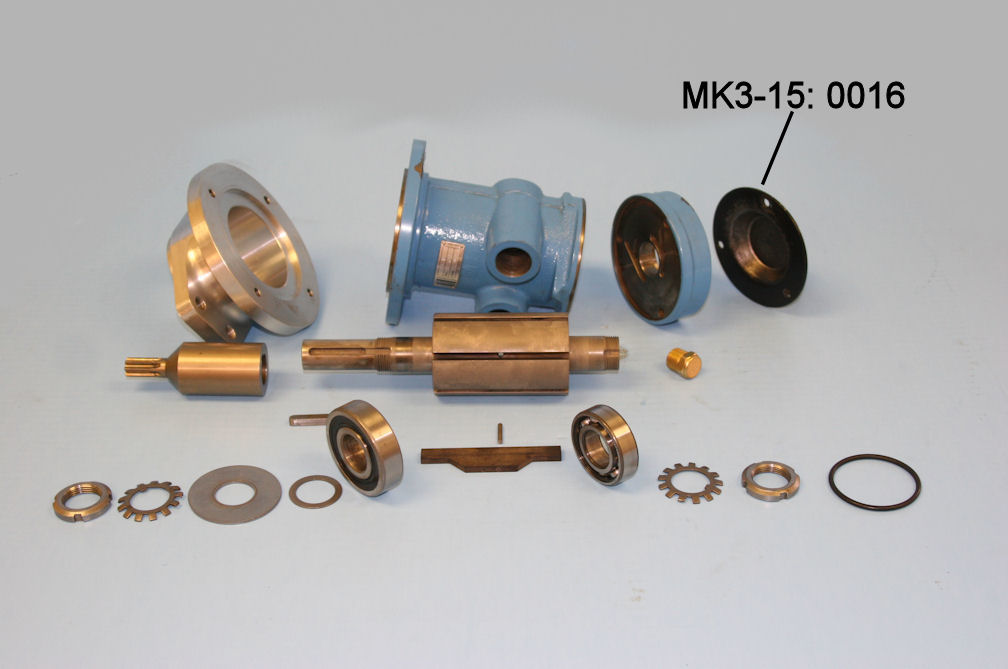

- MK3-15-0016: Cover
- MK3-15-0017: Screw

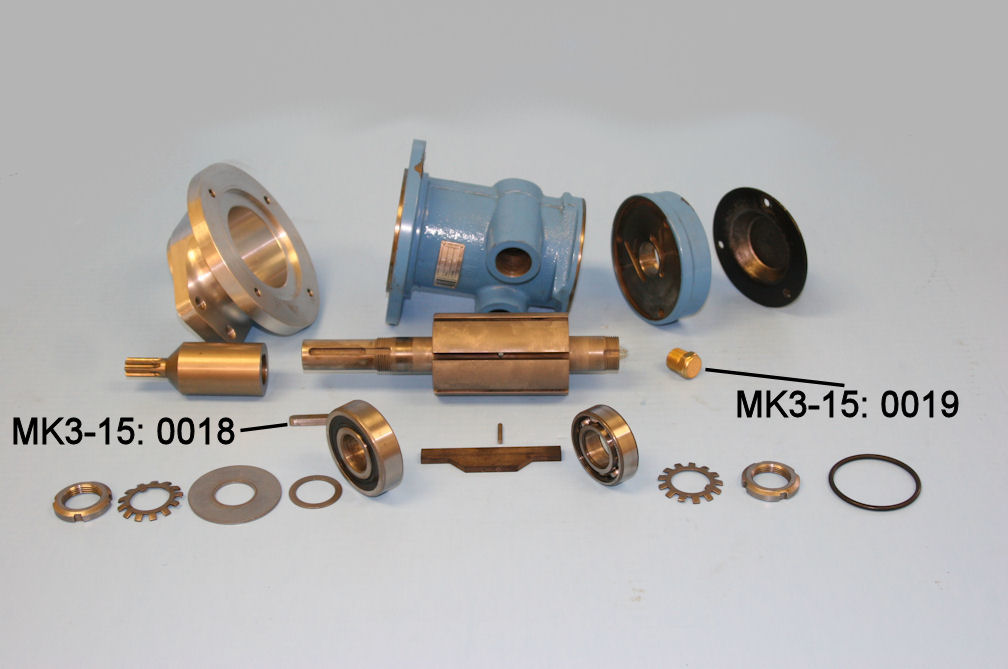

- MK3-15-0018: Key
- MK3-15-0019:Filter

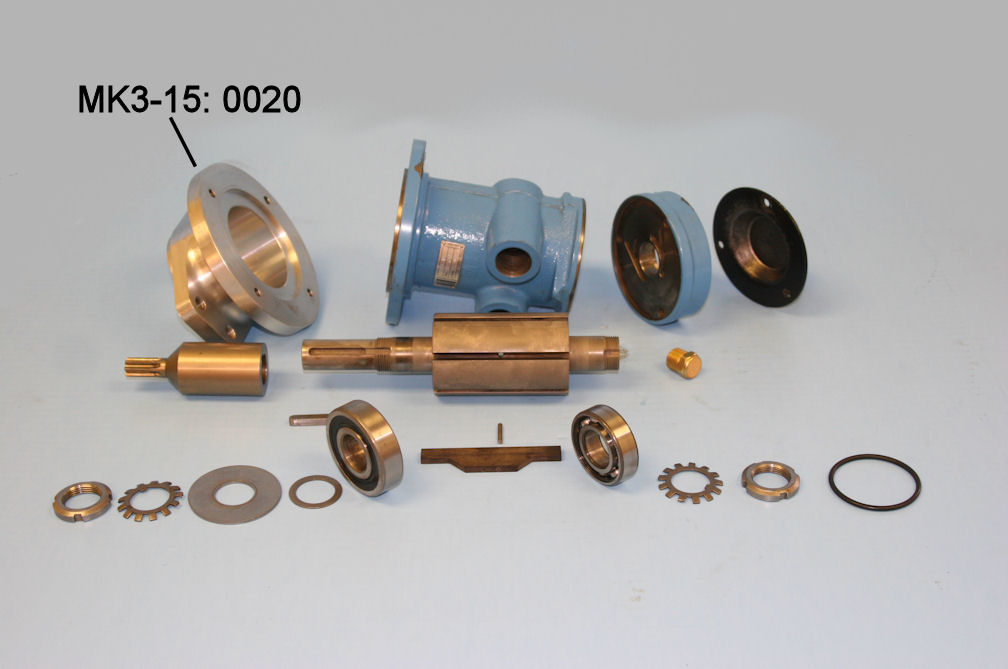

- MK3-15-0020: Transmission Adaptor

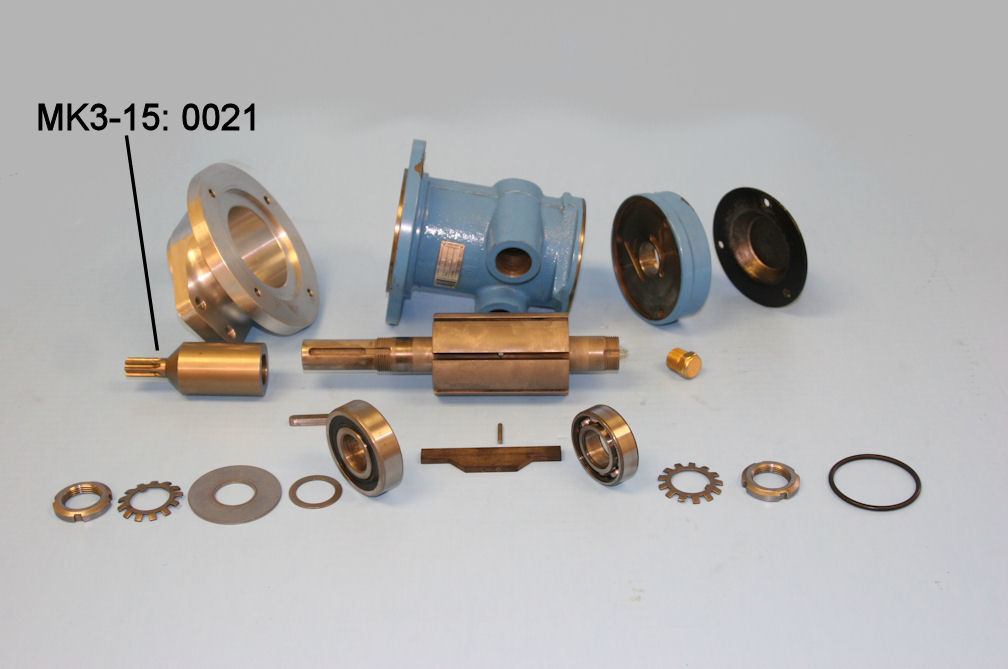

- MK3-15-0021: Pinion Gear

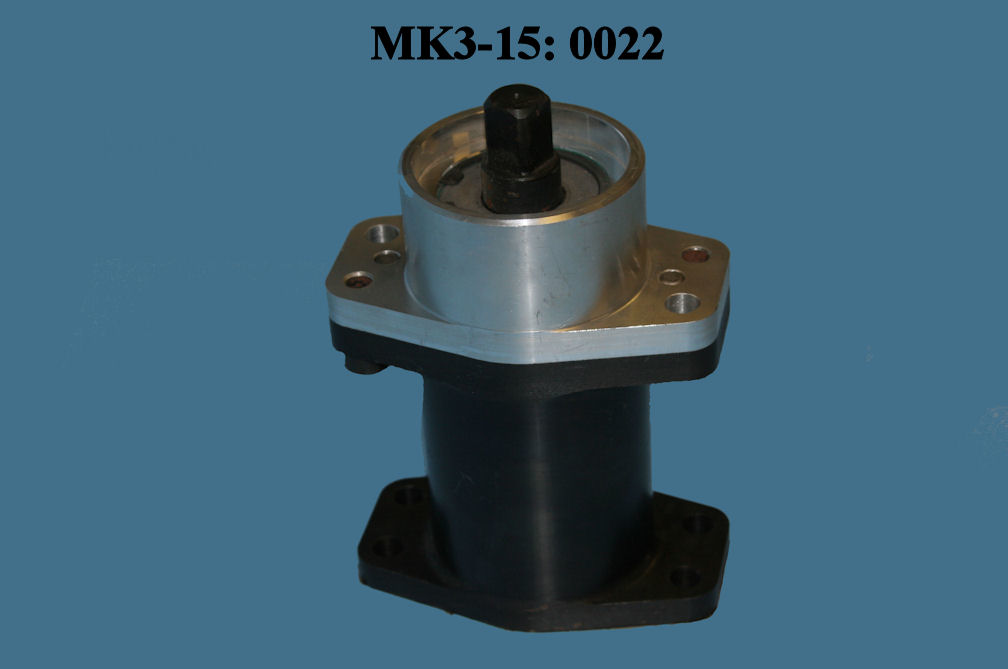

- MK3-15-0022: Transmission

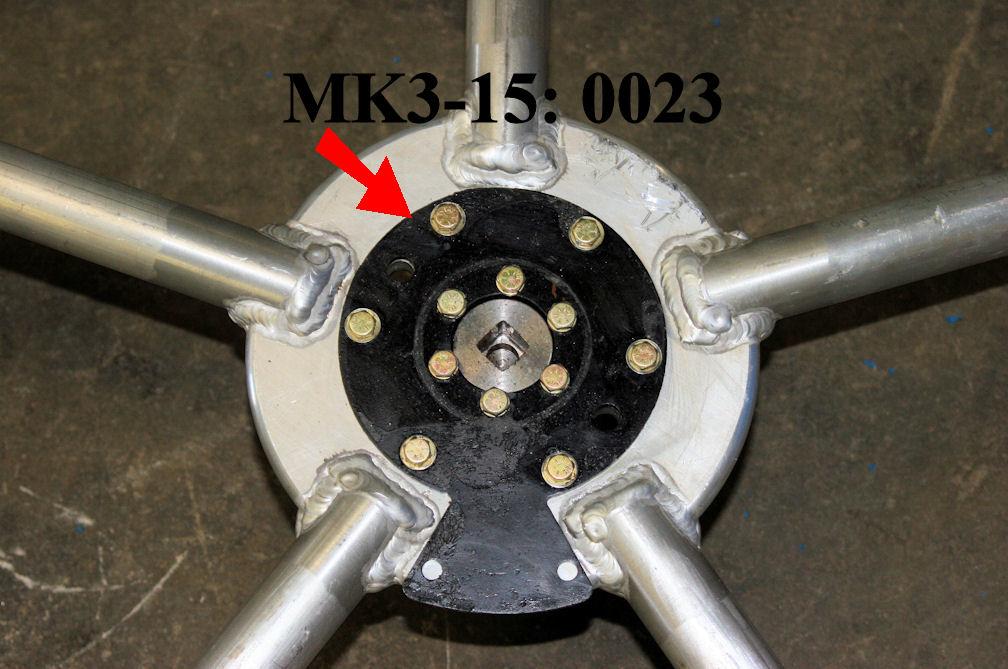

- MK3-15-0023: Adaptor, Transmission to Wagon Wheel

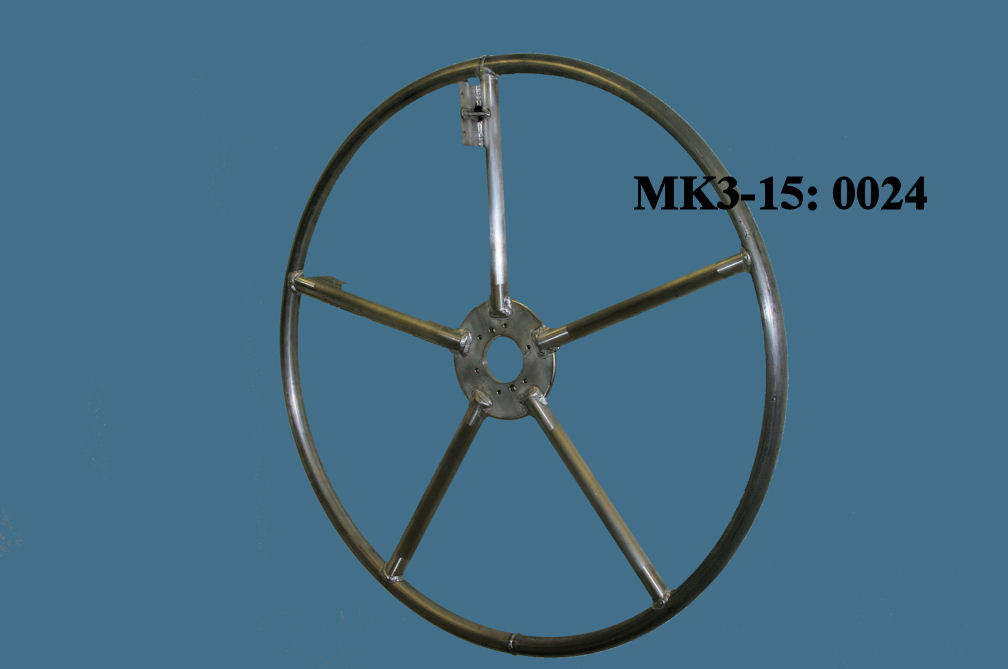

- MK3-15-0024: Wagon Wheel
- MK3-15-0025: Series 200 Swivel

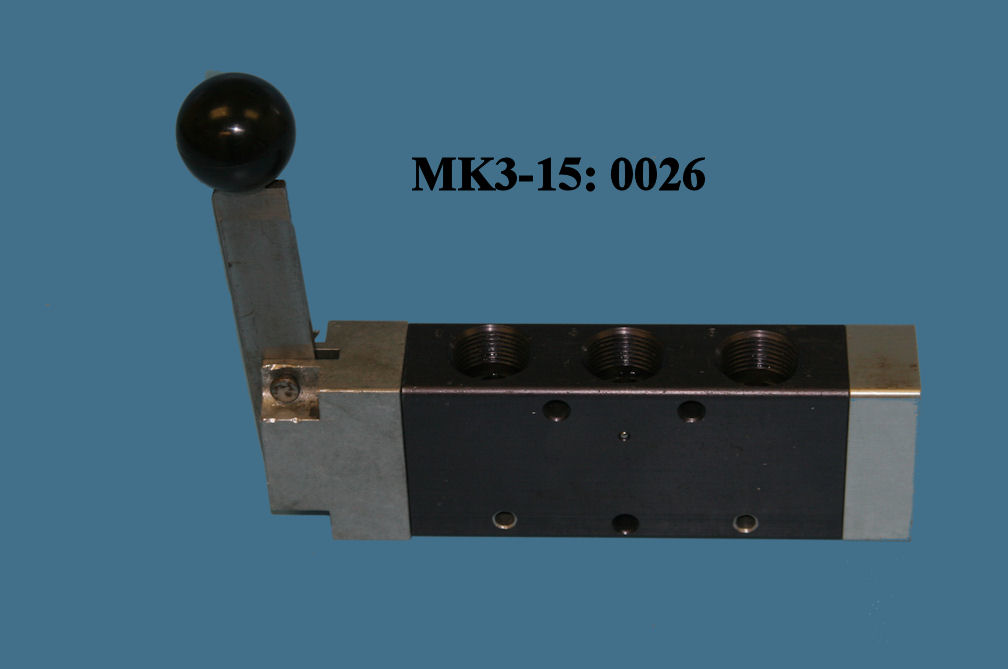

- MK3-15-0026: Drill Control Valve
- MK3-15-0027: Main Body Block

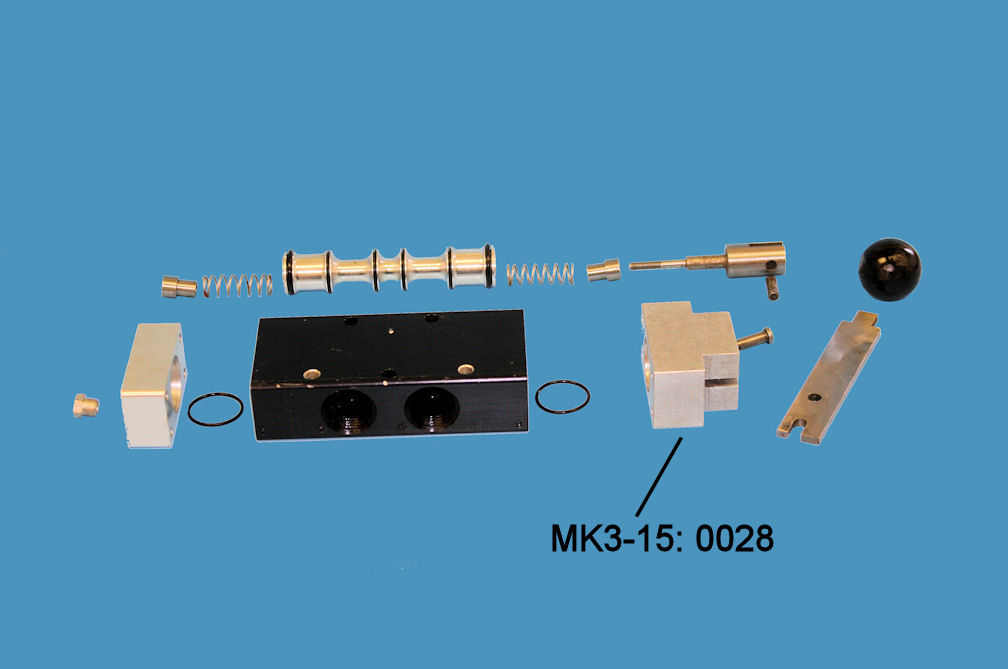

- MK3-15-0028: Block, Lever Side

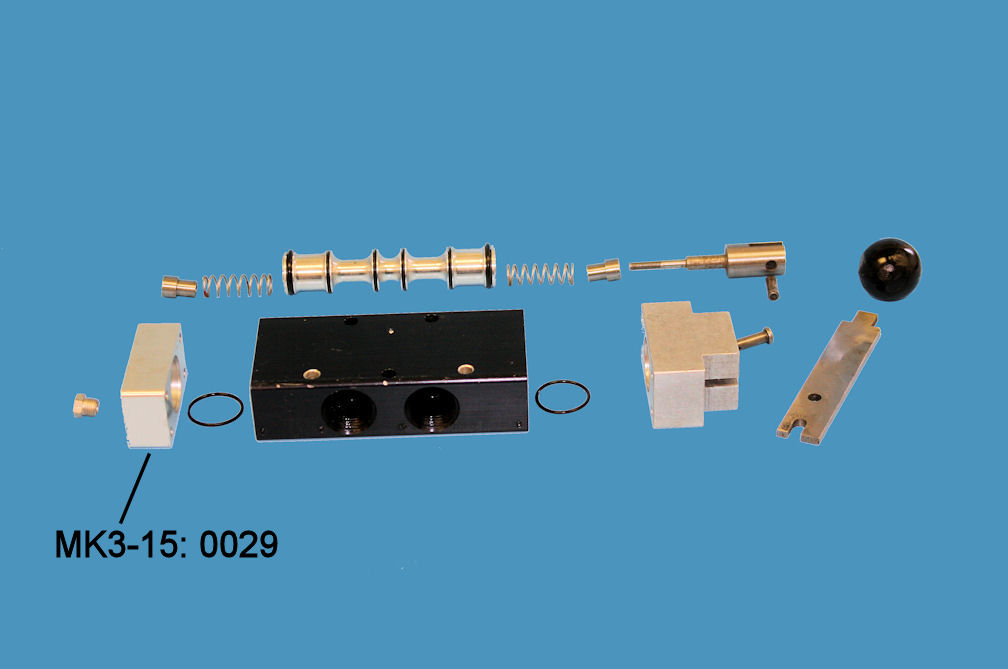

- MK3-15-00029: End Block
- MK3-15-0030: Spool, w/O-Rings
- MK3-15-0031: Spool Plunger

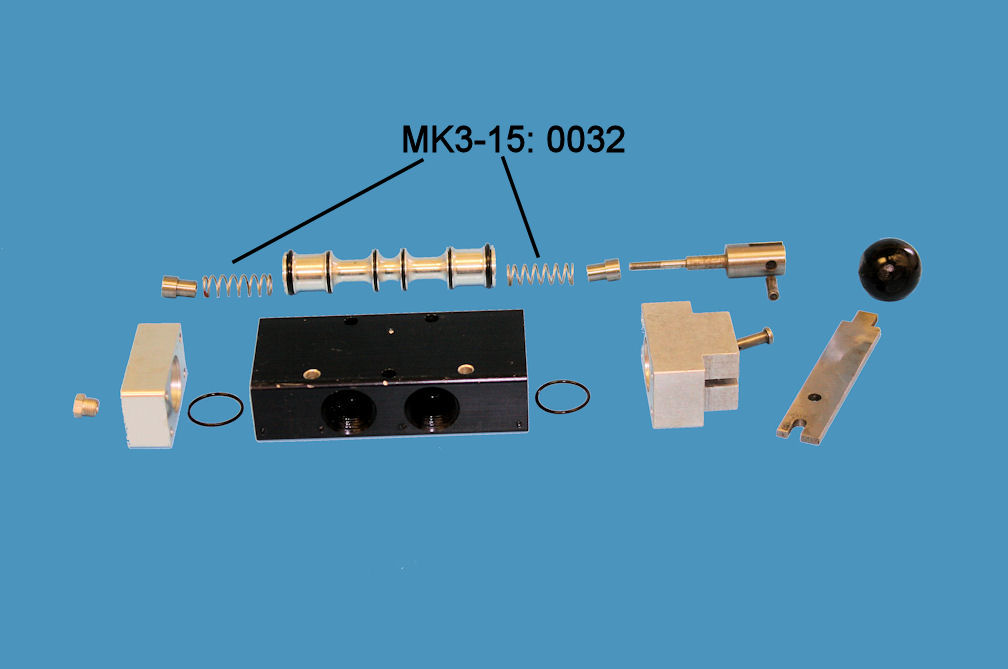

- MK3-15-0032: Spool Spring

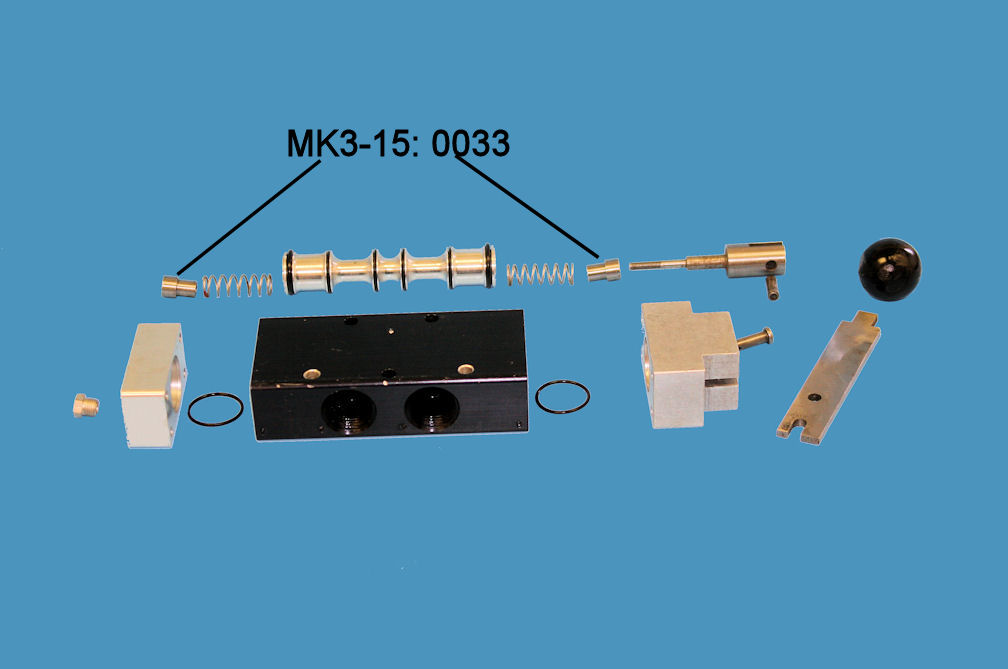

- MK3-15-0033: Spool Spacer

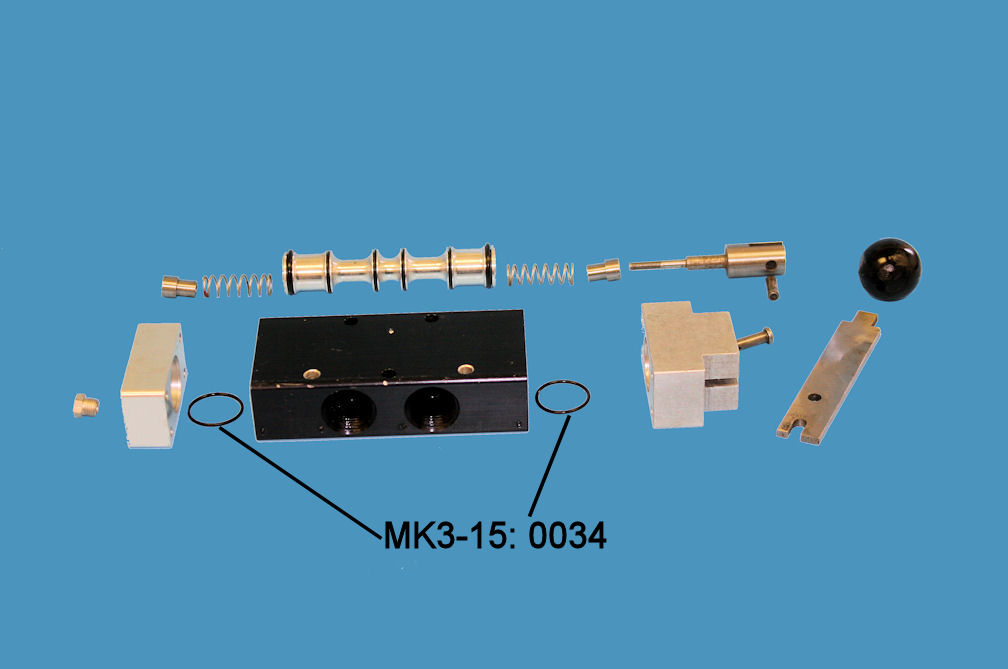

- MK-RA75-0034: O-Ring Seal

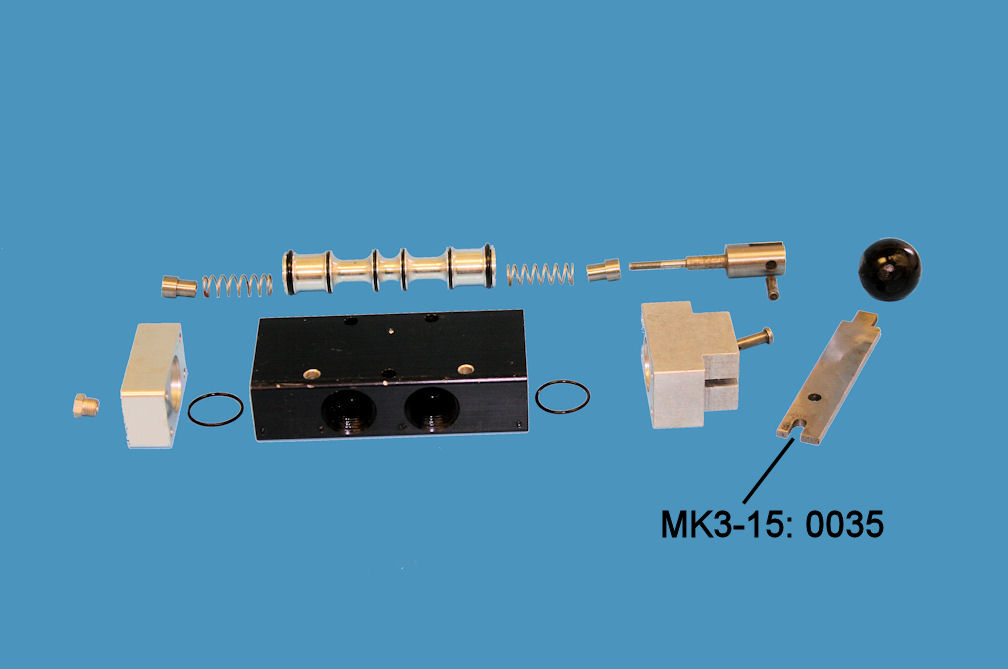

- MK3-15-00035: Control Lever
- MK3-15-00036: Control Lever Knob
- MK3-15-0036A: Filter

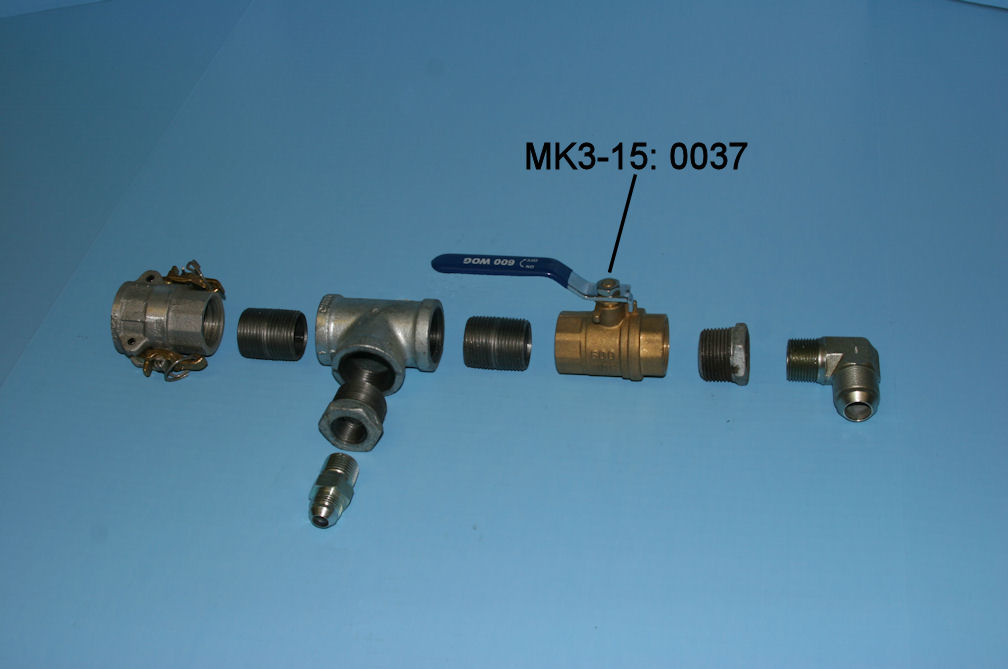

- MK3-15-0037: Down-Hole Air Valve, 1" NPT

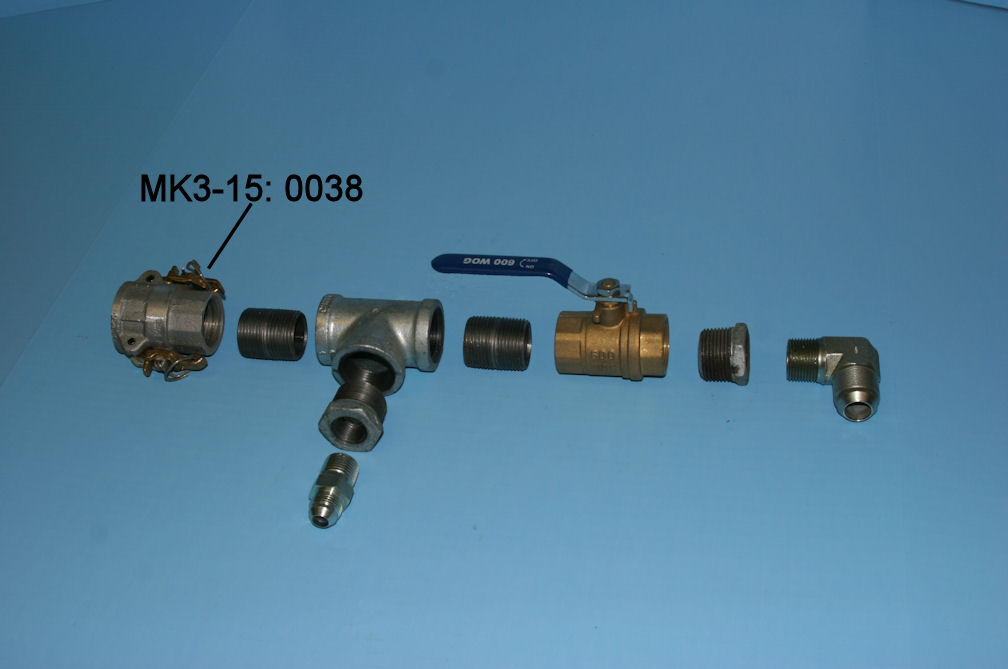

- MK3-15-0038: Female Camlock
- MK3-15-0039: 1″NPT Tee

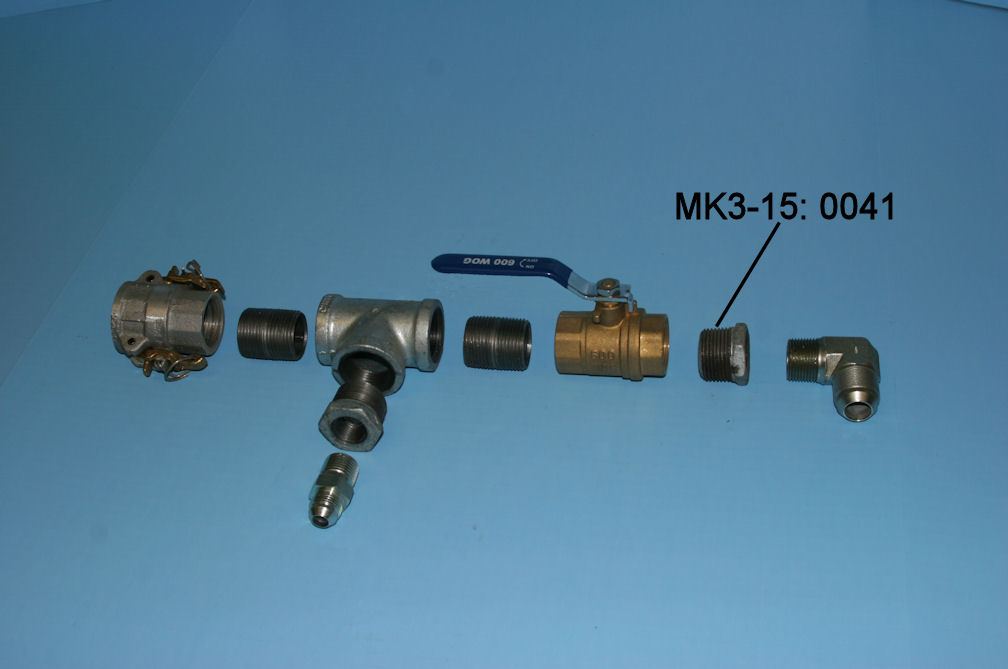

- MK3-15-0040: 1 1/4″ Swivel Reducer Bushing
- MK3-15-0041: 1″ NPT x 3/4″ Reducer

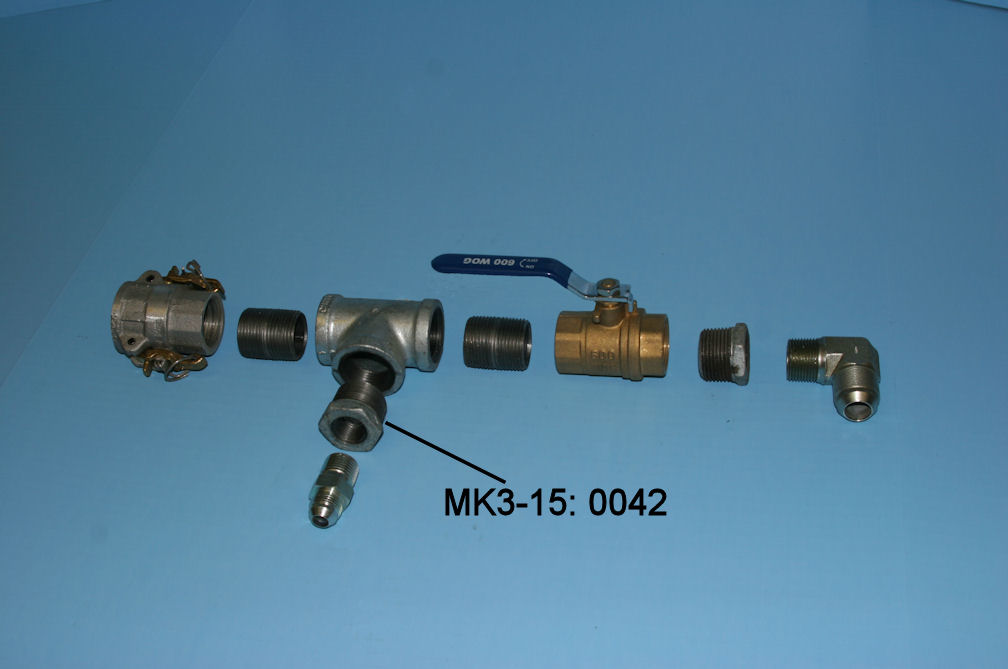

- MK3-15-0042: 1″NPT x 1/2″NPT Reducer

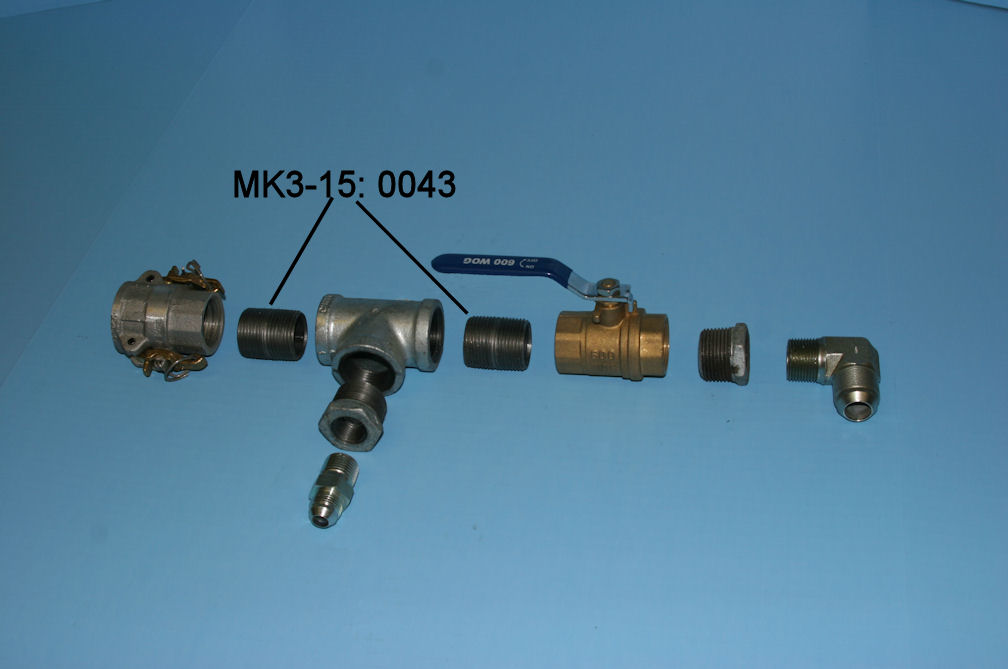

- MK3-15-0043: 1″NPT Close Nipple

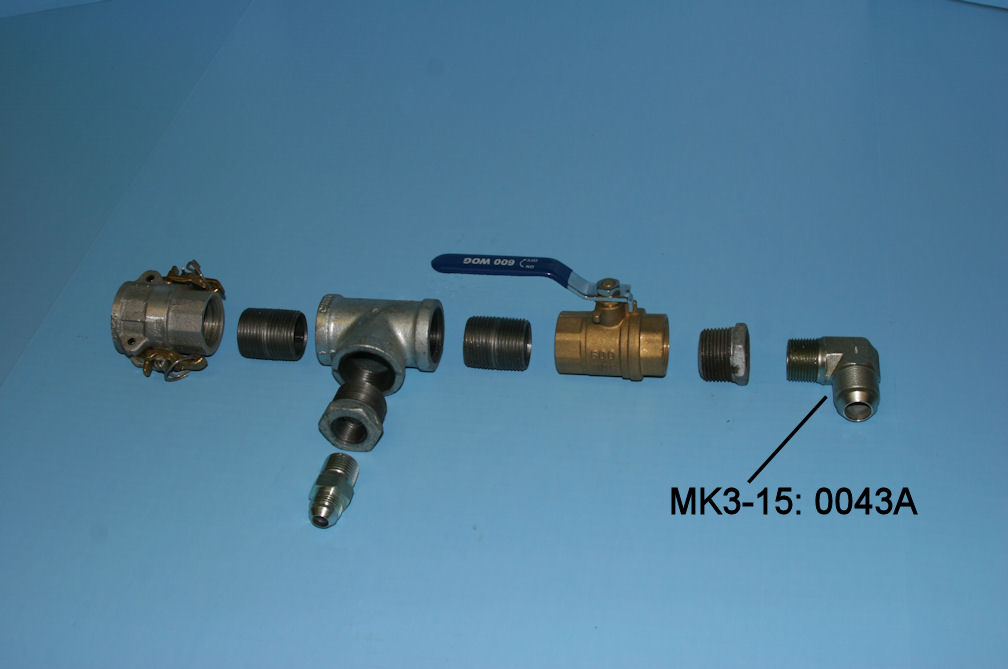

- MK3-15-0043A: 3/4″NPT to #8 MJ90

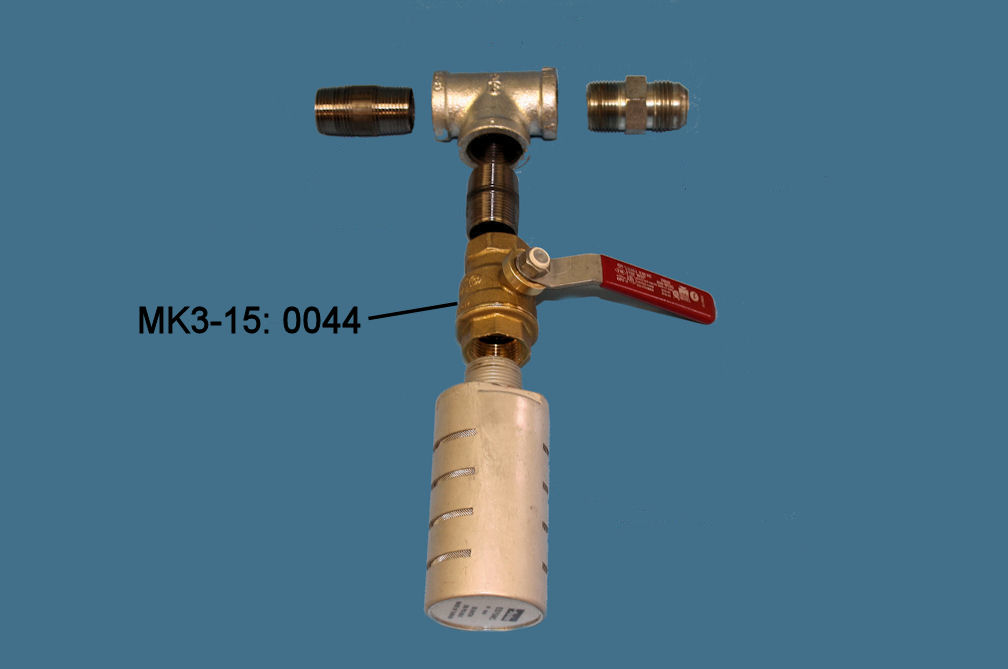

- MK3-15-0044: 3/4″NPT Ball Valve, Exhaust

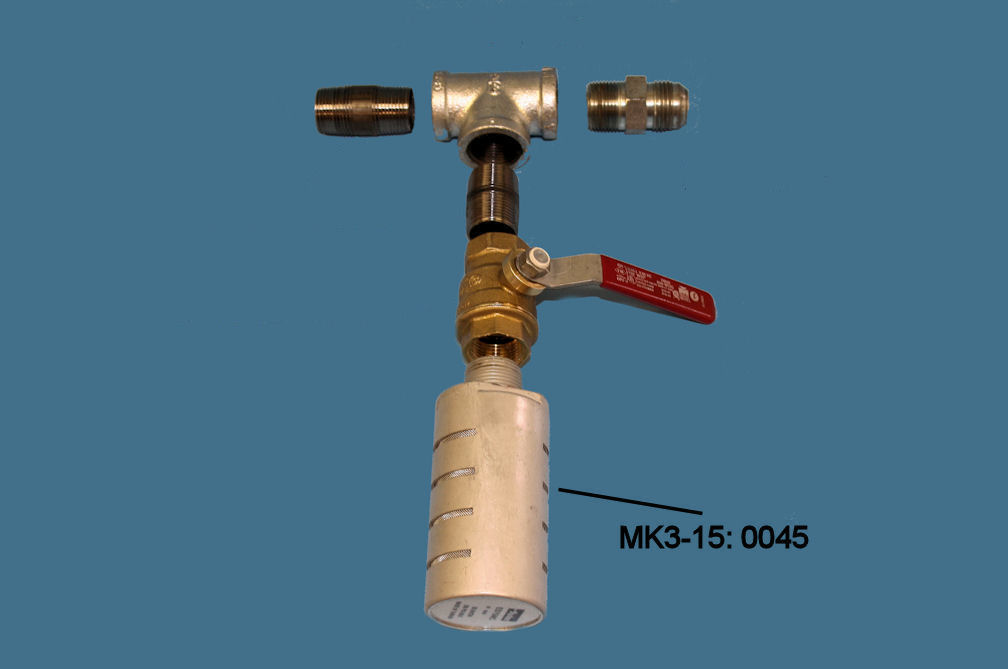

- MK3-15-0045: Exhaust Muffler, 3/4″ NPT

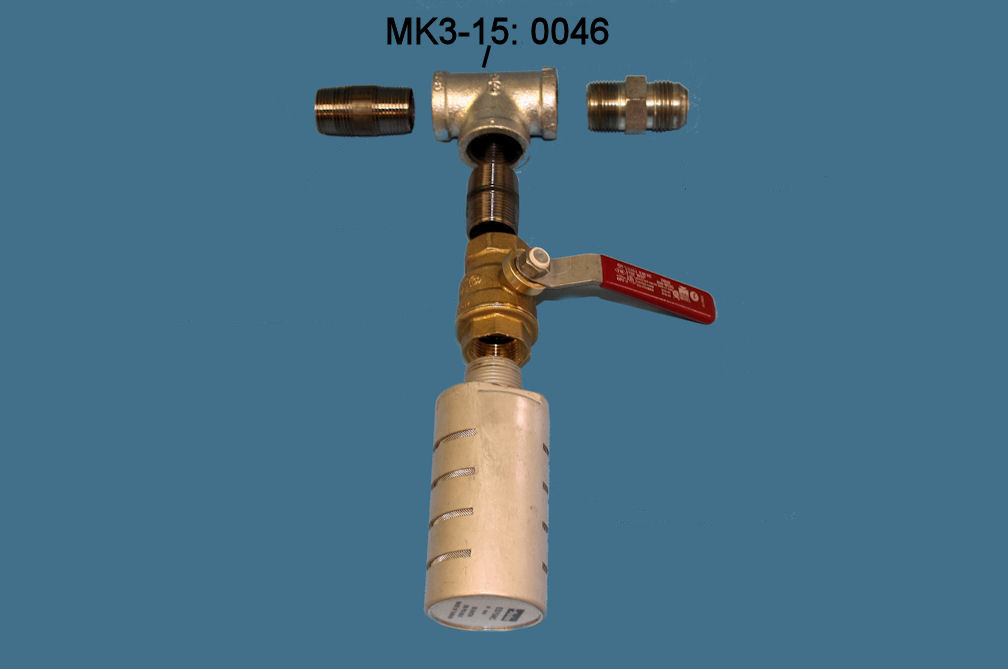

- MK3-15-0046: 3/4″NPT Tee, Exhaust Side

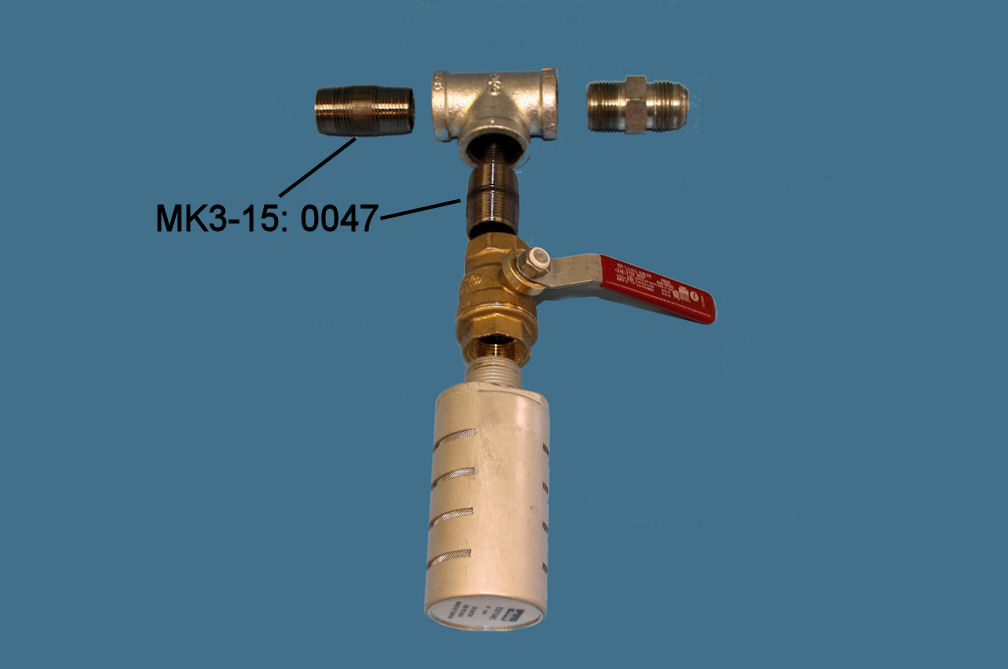

- MK3-15-0047: 3/4″NPT Close Nipple, Exhaust Side

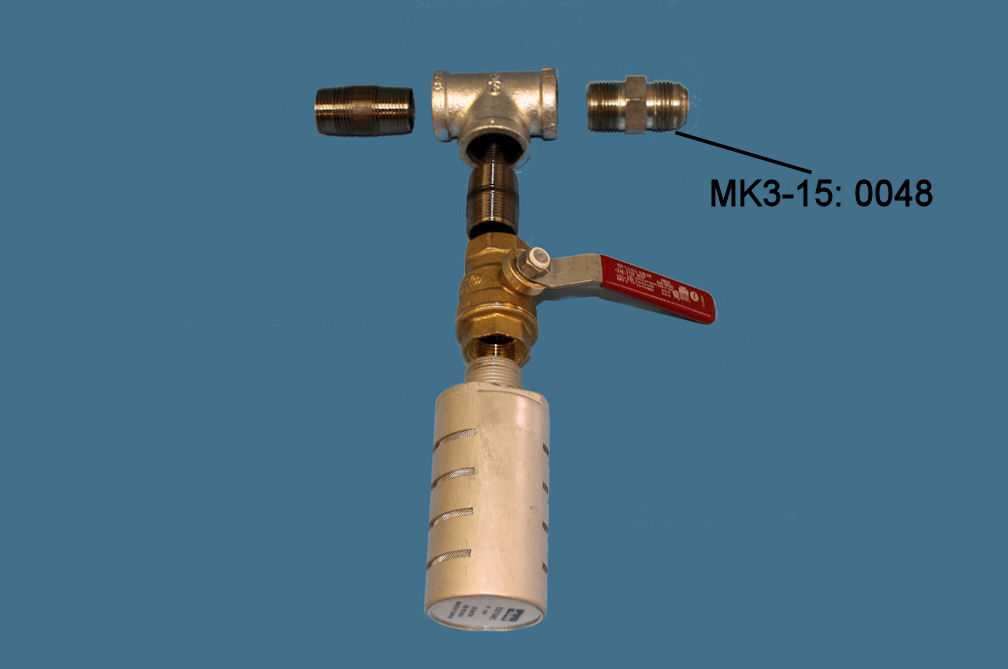

- MK-15-0048: 3/4″NPT x #12JIC

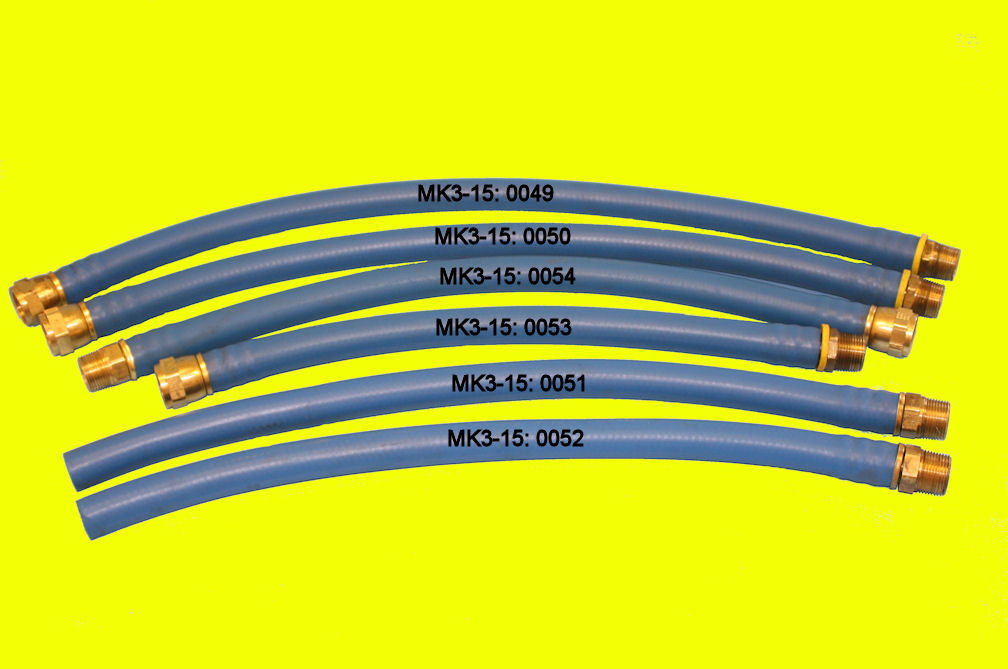

- MK3-15-0049: #12FJX x #12NPT Hose, 26 3/4″ Long, Control Valve to Motor
- MK3-15-0050: #12FJX x #12NPT Hose, 24″ Long, Control Valve to Motor
- MK3-15-0051: #12NPT Hose, 21 1/2″ Long, Exhaust
- MK3-15-0052: #12NPT Hose, 21 5/8″ Long, Control Valve Exhaust
- MK3-15-0053: #12FJX x #12NPT Hose, 16 7/8″ Long, Inlet Air to Control Valve
- MK3-15-0054: #12FJX x #12NPT Hose, 21 1/4" Long, Inlet Air to Swivel

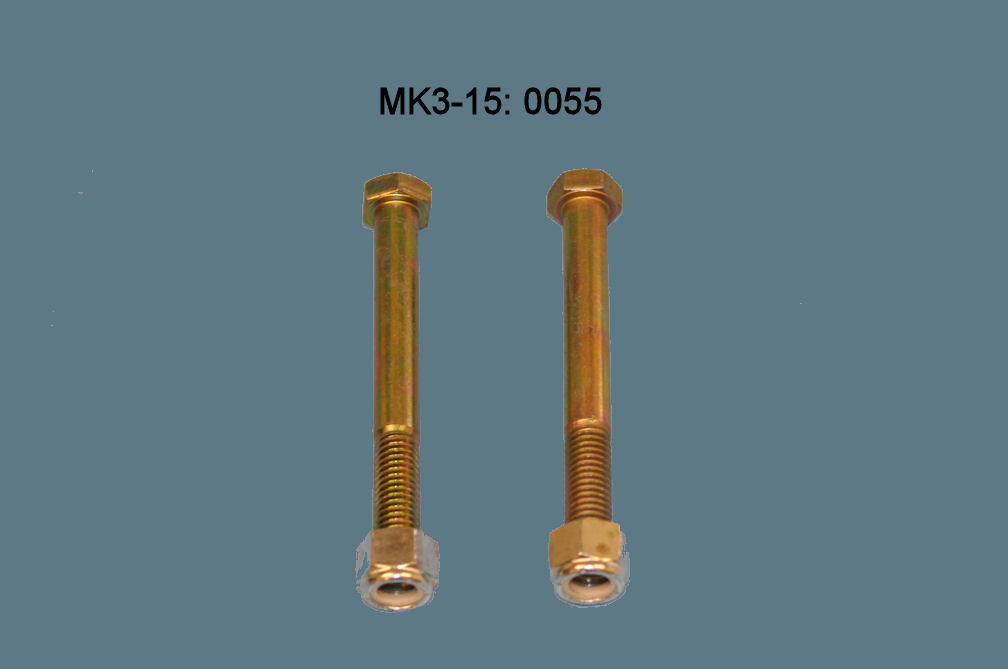

- MK3-15-00055: 1/2″ 13 x 4 1/2″ Long Bolt, Transmission to Wagon Wheel
- MK3-15-0056: #12mm x 1.75 x 25mm Long Bolt, Transmission to Motor

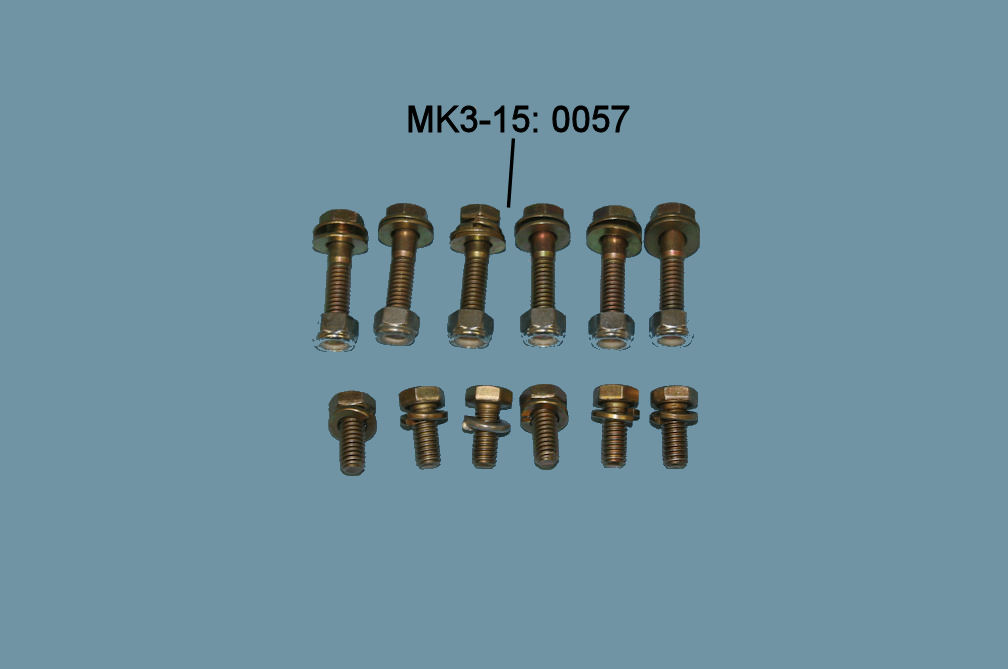

- MK3-15-0057: 5/16″ 18 x 1 1/2″ Long Bolt, Swivel Adaptor Mounting Bolts

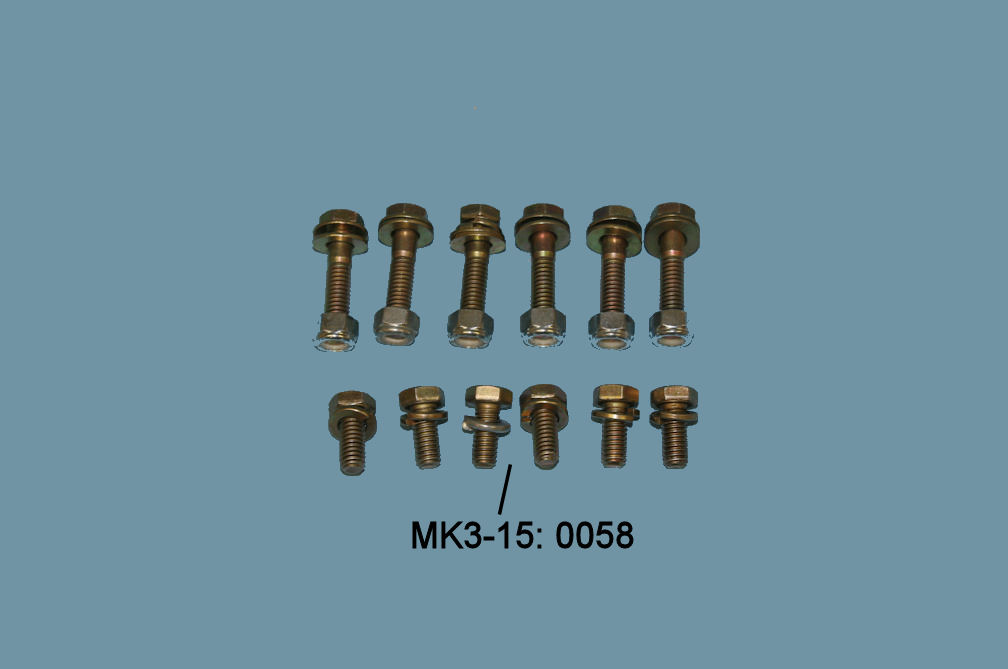

- MK3-15-0058: 5/16″ 18 x 3/4″ Long Bolt, Swivel Mounting Bolts
|
