HammerHead Rock Tools
MK3-Ra75 Motor Parts
Parts List
Right Angle Head Parts
MK3-RA75-205994: 3/4″ Square Drive
MK3-RA75-202497: Motor Housing
MK3-RA75-202483: Reaction Bar Clamp
MK3-RA75-202484: Reaction Bracket
MK3-RA75-202485: Bracket Bolt

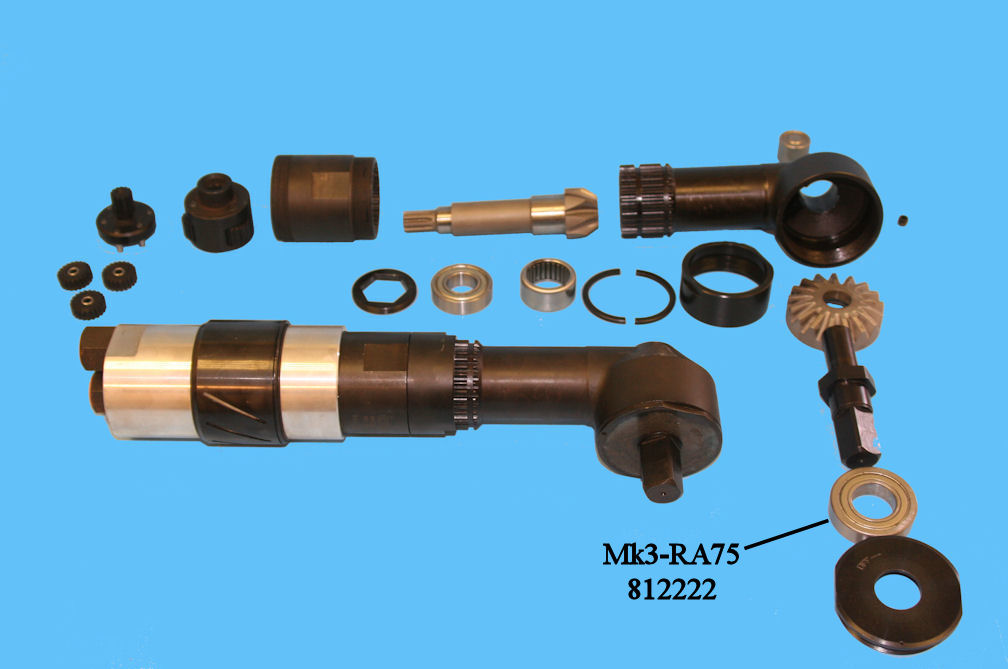

MK3-RA75-812222: Spindle Ball Bearing
MK3-RA75-845995: Jam Nut
MK3-RA75-847659: Pinion Ball Bearing
MK3-RA75-861905: Gear Set(8T and 17T)
MK3-RA75-867546: Grease Plug
MK3-RA75-867997: Bearing Cap Lock Screw
MK3-RA75-869875: Right Angle Head
MK3-RA75-869877: Bearing Retainer
MK3-RA75-869878: Clamp Nut
MK3-RA75-869879: Clamp Ring
MK3-RA75-869880: Pinion Needle Bearing
MK3-RA75-869887: Bearing Cap(Includes 867997)
MK3-RA75-883720: Spindle Needle Bearing
Gear Trains
MK3-RA75-832125: Idler Gear Pin
MK3-RA75-844774: Idler Gear Bearing
MK3-RA75-869897: Spider, Dash 2 and 4 (Incl 832125)
MK3-RA75-869899: Idler Gear(17T) Dash 4(Incl 844744)
MK3-RA75-869900: Idler Gear(21T) Dash 2(Incl 844744)
MK3-RA75-869901: Pinion Gear(16T)(7T ID) Dash 4
MK3-RA75-869902: Idler Gear(18T) Dash 2 and 4
MK3-RA75-869904: Spider Dash 2 and 4
MK3-RA75-869906: Gear Case(50T)
MK3-RA75-869907: Needle Roller(13 Per Gear
MK3-RA75-869908: Idler Gear Pin
RA75 Motor and Housing
MK3-RA75-202050: Deflector Spacer
MK3-RA75-202051: Exhaust Deflector
MK3-RA75-203147: Rotor (7T)
MK3-RA75-203148: Cylinder
MK3-RA75-615018: O-Ring
MK3-RA75-812918: Cylinder Pin
MK3-RA75-847603: Cylinder Alignment Screw
MK3-RA75-847960: Set Screw
MK3-RA75-847528: Rotor Bearing
MK3-RA75-865352: Rotor Lock Nut
MK3-RA75-869923: Front Bearing Plate
MK3-RA75-869927: Rotor Blade
MK3-RA75-869928: Rear Bearing Plate
MK3-RA75-869929: Motor Spacer
MK3-RA75-869943: Muffler
