HammerHead Rock Tools
WP-10 Water Pump
Parts List
Click on Underlined Part to View
WP-10-23025: Housing Assembly
WP-10-21260: Adaptor to Housing, 3/8' SS Studs, 3pcs(Included w/Assembly)
WP-10-21291: 3/8" SS Cap Screws(Included w/Assembly)
WP-10-22379: Cast Iron Pipe Plug, 1" NPT(Included w/Assembly)
WP-10-21267: 1/4" NPT Drain Plug(Included w/Assembly)
WP-10-22240: Housing to Adapter Gasket
WP-10-23376: Wear Plate Assembly
WP-10-21262: 3/8" SS Flat Head Screw(Included w/Assembly)
WP-10-21271: 5/8" Annular Gasket(Included w/Assembly)
WP-10-23038: Impeller Assembly

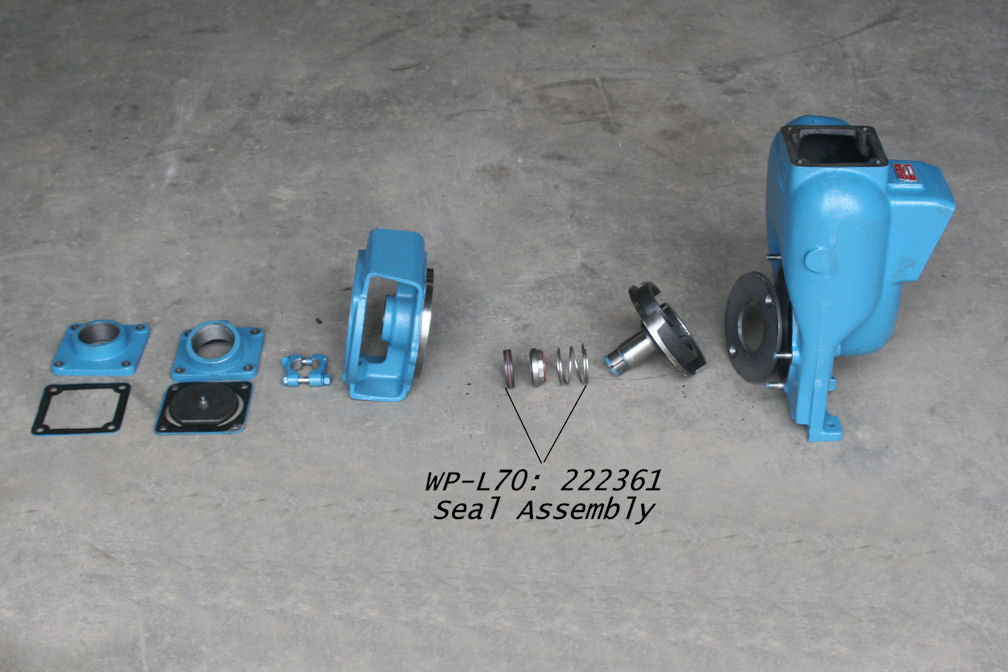

WP-10-22361: Impeller Seal Assembly
WP-10-23348: Adapter
WP-10-23039: Impeller Clamp Assembly
WP-10-21266: 3/8" SS Lockwasher(Included w/Assembly)
WP-10-21269: 3/8" SS Cap Screw(Included w/Assembly)
WP-10-2168: 3/8" SS Hex Nut(Included w/Assembly)
WP-10-22369: Inlet Flange
WP-10-23040: Flapper Assembly
WP-10-22372: Outlet Flange
WP-10-22358: Outlet Flange Gasket
